A9F44216 – SCHNEIDER Acti9 iC60N 2P 16A C Miniature Circuit breaker — SCHNEIDER

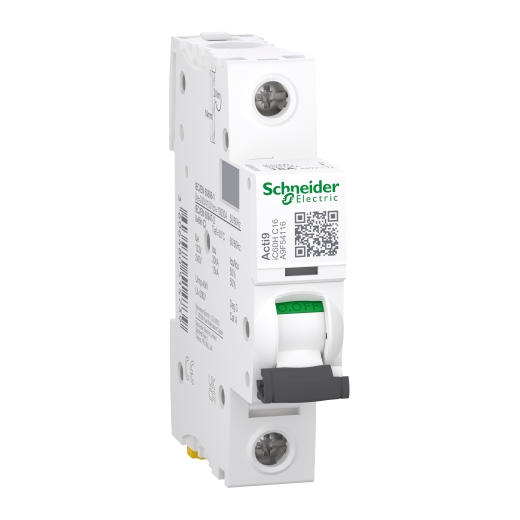

Product image for reference. Check the manufacturer's documentation for exact appearance and dimensions.

SCHNEIDER

A9F44216 – SCHNEIDER Acti9 iC60N 2P 16A C Miniature Circuit breaker

Brand
SCHNEIDER
Model / part no.
A9F44216
Category
Breakers
Type
Miniature Circuit Breakers (MCB)
Price and availability on request. Our team confirms both with every quotation.
Request a Quote

9 mm Pitches: 4

Specifications
Product NameDisbo iC60
BrandSchneider Electric
SeriesActi9
TypeMiniature Circuit Breaker (MCB)
Device Short NameIC60N
Poles2P
Number of Protected Poles2
Rated Current ([In])16 A
Trip Unit TechnologyThermal-Magnetic
Curve TypeC Curve
Network TypeAC
Rated Operational Voltage ([Ue])400 V AC, 50/60 Hz
Network Frequency50/60 Hz
Breaking Capacity (Icu)
  • 10 kA at ≤125 V DC (EN/IEC 60947-2)
  • 6 kA at 415 V AC (EN/IEC 60898-1)
  • 36 kA at 12–133 V AC (EN/IEC 60947-2)
  • 20 kA at 220–240 V AC (EN/IEC 60947-2)
  • 10 kA at 380–415 V AC (EN/IEC 60947-2)
  • 6 kA at 440 V AC (EN/IEC 60947-2)
Service Breaking Capacity (Ics)
  • 27 kA (75%) at 12–133 V AC
  • 15 kA (75%) at 220–240 V AC
  • 7.5 kA (75%) at 380–415 V AC
  • 4.5 kA (75%) at 440 V AC
  • 6 kA (100%) at 100–133 V DC
  • 6 kA (100%) at 415 V AC (EN/IEC 60898-1)
Magnetic Tripping Limit8 × In ±20%
Utilisation CategoryCategory A (EN/IEC 60947-2)
Limitation Class3 (EN/IEC 60947-2)
Rated Insulation Voltage ([Ui])500 V AC
Impulse Withstand Voltage ([Uimp])6 kV
Contact Position IndicatorYes
Control TypeToggle
Local SignallingTrip indicator
Mounting ModeClip-on
Mounting SupportDIN Rail
Dimensions (HxWxD)85 x 36 x 78.5 mm
Net Weight0.25 kg
ColourWhite
Mechanical Durability20,000 cycles
Electrical Durability10,000 cycles
Provision for PadlockingPadlockable
Connections – Terminals
  • 1…25 mm² rigid (top or bottom)
  • 1…16 mm² flexible (top or bottom)
Wire Stripping Length14 mm (top or bottom connection)
Tightening Torque2 N·m (top or bottom)
Earth-Leakage ProtectionSeparate block
Standards
  • EN/IEC 60947-2
  • EN/IEC 60898-1
IP Degree of ProtectionIP20 (IEC 60529)
Pollution Degree3 (EN/IEC 60947-2)
Overvoltage CategoryIV
TropicalisationClass 2 (IEC 60068-1)
Relative Humidity95% at 55°C
Operating Temperature-35 to +70 °C
Storage Temperature-40 to +85 °C
