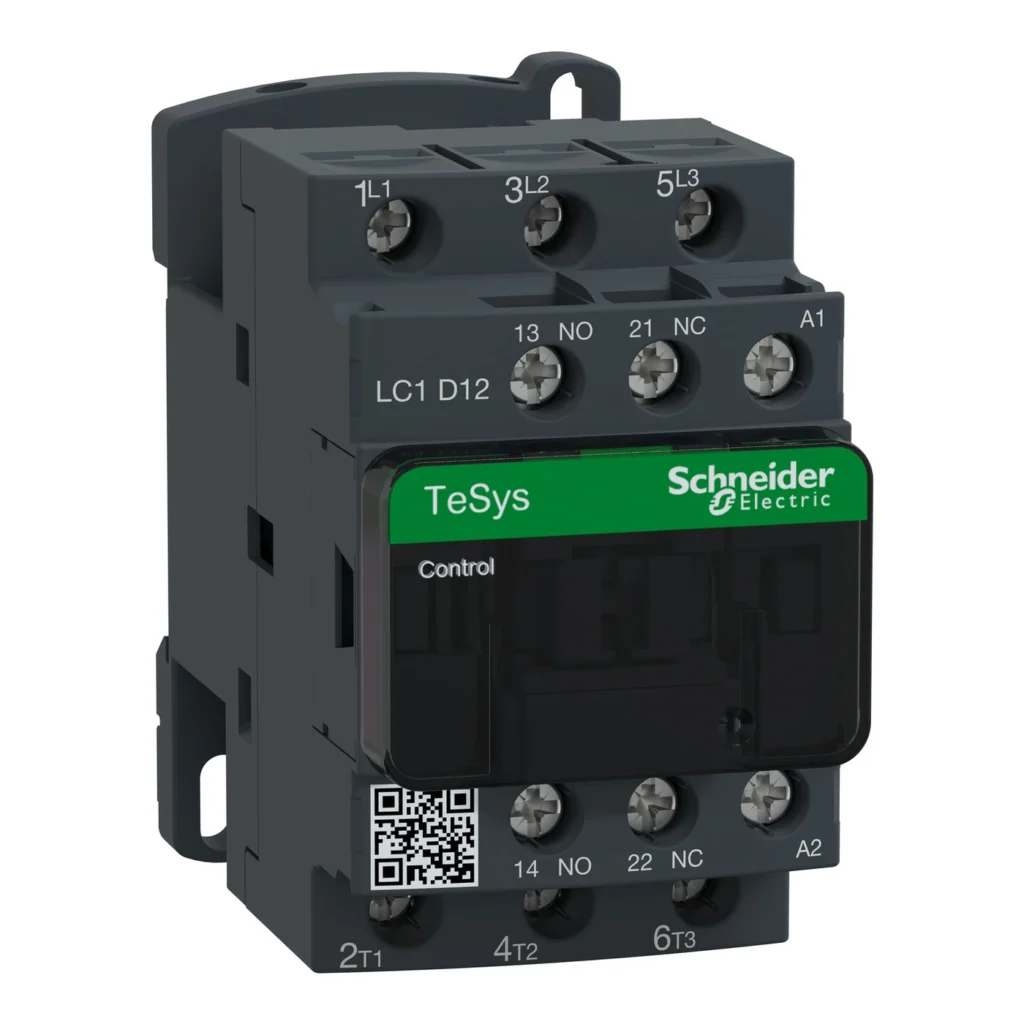

LC1D12P7 – Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 230V AC 50/60Hz coil, screw clamp terminals — SCHNEIDER

Product image for reference. Check the manufacturer's documentation for exact appearance and dimensions.

SCHNEIDER

LC1D12P7 – Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 230V AC 50/60Hz coil, screw clamp terminals

Brand
SCHNEIDER
Model / part no.
LC1D12P7
Category
Contactors
Price and availability on request. Our team confirms both with every quotation.
Request a Quote

TeSys D contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3/3e (5.5kW@400V). It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Specifications Source: Schneider Electric product page
Range of productTeSys Deca
Product or component typeContactor
Device short nameLC1D
Contactor application
  • Resistive load
  • Motor control
Utilisation category
  • AC-3
  • AC-3e
  • AC-1
  • AC-4
Poles description3P
[Ue] rated operational voltage
  • Power circuit: <= 690 V AC 25...400 Hz
  • Power circuit: <= 300 V DC
[Ie] rated operational current
  • 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
  • 12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
  • 12 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
[Uc] control circuit voltage230 V AC 50/60 Hz
Motor power kW
  • 3 kW at 220/230 V AC 50/60 Hz (AC-3)
  • 5.5 kW at 380/400 V AC 50/60 Hz (AC-3)
  • 5.5 kW at 415/440 V AC 50/60 Hz (AC-3)
  • 7.5 kW at 500 V AC 50/60 Hz (AC-3)
  • 7.5 kW at 660/690 V AC 50/60 Hz (AC-3)
  • 3 kW at 220/230 V AC 50/60 Hz (AC-3e)
  • 5.5 kW at 380/400 V AC 50/60 Hz (AC-3e)
  • 5.5 kW at 415/440 V AC 50/60 Hz (AC-3e)
  • 7.5 kW at 500 V AC 50/60 Hz (AC-3e)
  • 7.5 kW at 660/690 V AC 50/60 Hz (AC-3e)
  • 3.7 kW at 400 V AC 50/60 Hz (AC-4)
Motor power hp
  • 0.5 hp at 115 V AC 50/60 Hz for 1 phase motors
  • 2 hp at 230/240 V AC 50/60 Hz for 1 phase motors
  • 3 hp at 200/208 V AC 50/60 Hz for 3 phases motors
  • 3 hp at 230/240 V AC 50/60 Hz for 3 phases motors
  • 7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors
  • 10 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Compatibility codeLC1D
Pole contact composition3 NO
Protective coverWith
[Ith] conventional free air thermal current
  • 25 A (at 60 °C) for power circuit
  • 10 A (at 60 °C) for signalling circuit
Irms rated making capacity
  • 250 A at 440 V for power circuit conforming to IEC 60947
  • 140 A AC for signalling circuit conforming to IEC 60947-5-1
  • 250 A DC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity250 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current
  • 105 A 40 °C - 10 s for power circuit
  • 210 A 40 °C - 1 s for power circuit
  • 30 A 40 °C - 10 min for power circuit
  • 61 A 40 °C - 1 min for power circuit
  • 100 A - 1 s for signalling circuit
  • 120 A - 500 ms for signalling circuit
  • 140 A - 100 ms for signalling circuit
Associated fuse rating
  • 10 A gG for signalling circuit conforming to IEC 60947-5-1
  • 40 A gG at <= 690 V coordination type 1 for power circuit
  • 25 A gG at <= 690 V coordination type 2 for power circuit
Average impedance2.5 mOhm - Ith 25 A 50 Hz for power circuit
Power dissipation per pole
  • 0.36 W AC-3
  • 1.56 W AC-1
  • 0.36 W AC-3e
[Ui] rated insulation voltage
  • Power circuit: 690 V conforming to IEC 60947-4-1
  • Power circuit: 600 V CSA certified
  • Power circuit: 600 V UL certified
  • Signalling circuit: 690 V conforming to IEC 60947-1
  • Signalling circuit: 600 V CSA certified
  • Signalling circuit: 600 V UL certified
Overvoltage categoryIII
Pollution degree3
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947
Safety reliability level
  • B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
  • B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Mechanical durability15 Mcycles
Electrical durability
  • 2 Mcycles 12 A AC-3 at Ue <= 440 V
  • 0.8 Mcycles 25 A AC-1 at Ue <= 440 V
  • 2 Mcycles 12 A AC-3e at Ue <= 440 V
Control circuit typeAC at 50/60 Hz standard
Coil technologyWithout built-in suppressor module
