LC1F225M7 – Schneider Electric TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 225 A - coil 220 V AC — SCHNEIDER

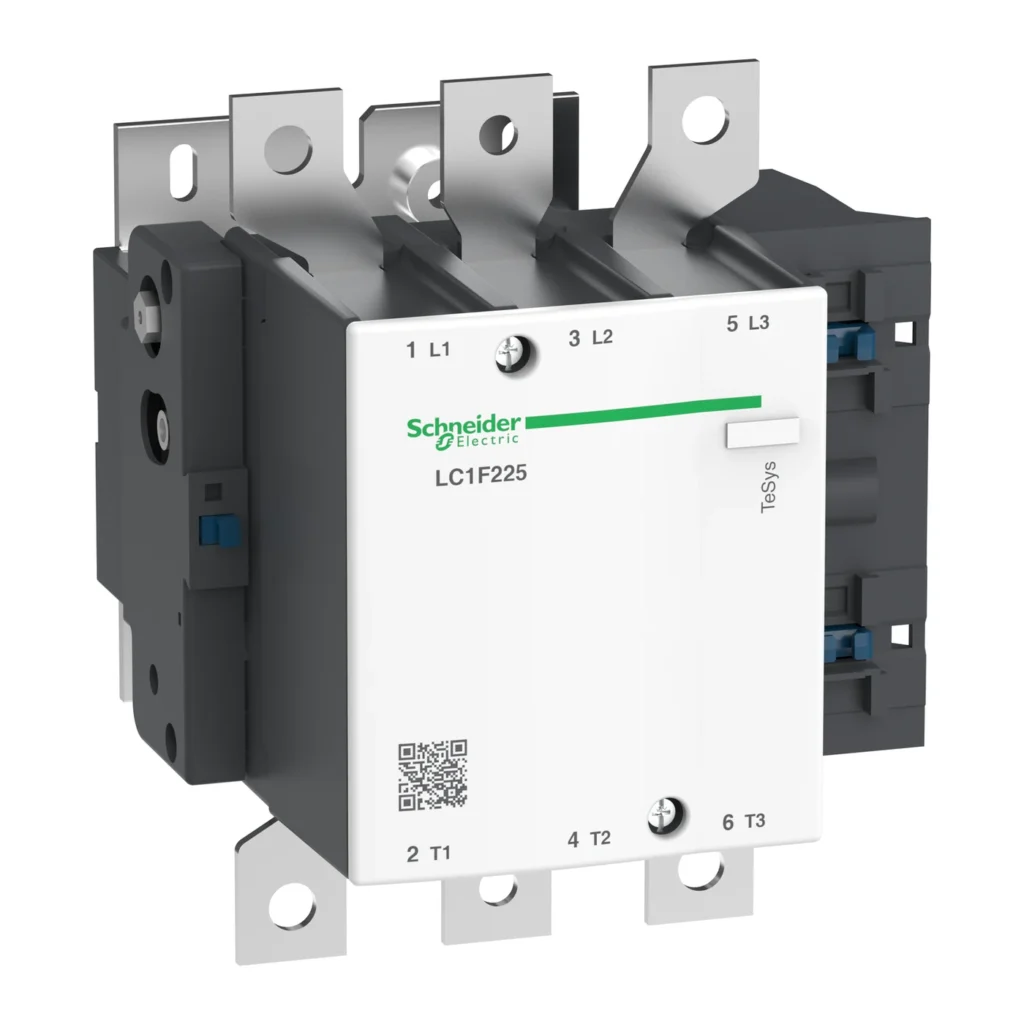

Product image for reference. Check the manufacturer's documentation for exact appearance and dimensions.

SCHNEIDER

LC1F225M7 – Schneider Electric TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 225 A - coil 220 V AC

Brand
SCHNEIDER
Model / part no.
LC1F225M7
Category
Contactors
In stock in Dubai. Price on request. Our team confirms price and quantity with every quotation.
Request a Quote

TeSys F contactor, 3 poles (3NO), 225A/690V AC-3, for motor applications up to 110kW@400V. It provides a low sealed consumption 220V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Specifications Source: Schneider Electric product page
Range of productTeSys F
Product or component typeContactor
Device short nameLC1F
Contactor application
  • Motor control
  • Resistive load
Utilisation category
  • AC-1
  • AC-4
  • AC-3
Poles description3P
[Ue] rated operational voltage
  • <= 460 V DC
  • <= 690 V AC 50/60 Hz
[Uc] control circuit voltage220 V AC 40...400 Hz
[Ie] rated operational current
  • 315 A (at <40 °C) at <= 440 V AC-1
  • 225 A (at <55 °C) at <= 440 V AC-3
[Uimp] rated impulse withstand voltage8 kV
[Ith] conventional free air thermal current315 A (at 40 °C)
Rated breaking capacity1800 A conforming to IEC 60947-4-1
[Icw] rated short-time withstand current
  • 1800 A 40 °C - 10 s
  • 1000 A 40 °C - 30 s
  • 850 A 40 °C - 1 min
  • 560 A 40 °C - 3 min
  • 440 A 40 °C - 10 min
Associated fuse rating
  • 315 A gG at <= 440 V
  • 250 A aM at <= 440 V
Average impedance0.32 mOhm - Ith 315 A 50 Hz
[Ui] rated insulation voltage
  • 1000 V conforming to IEC 60947-4-1
  • 1500 V conforming to VDE 0110 group C
Power dissipation per pole
  • 32 W AC-1
  • 16 W AC-3
Overvoltage categoryIII
Power pole contact composition3 NO
Motor power kW
  • 110 kW at 380...400 V AC 50/60 Hz (AC-3)
  • 110 kW at 415 V AC 50/60 Hz (AC-3)
  • 110 kW at 440 V AC 50/60 Hz (AC-3)
  • 129 kW at 500 V AC 50/60 Hz (AC-3)
  • 129 kW at 660...690 V AC 50/60 Hz (AC-3)
  • 63 kW at 220...230 V AC 50/60 Hz (AC-3)
  • 40 kW at 400 V AC 50/60 Hz (AC-4)
Control circuit voltage limits
  • Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C)
  • Drop-out: 0.2...0.55 Uc 40...400 Hz (at 55 °C)
Mechanical durability10 Mcycles
Inrush power in VA1070 VA, 40...400 Hz cos phi 0.9 (at 20 °C)
Hold-in power consumption in VA9.9 VA, 40...400 Hz cos phi 0.9 (at 20 °C)
Maximum operating rate2400 cyc/h 55 °C
Operating time
  • 35 ms closing (at Uc)
  • 130 ms opening (at Uc)
Connections - terminals
  • Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
  • Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
  • Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
  • Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
  • Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
  • Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
  • Power circuit: bar 2 cable(s) - busbar cross section: 32 x 4 mm
  • Power circuit: lugs-ring terminals 1 cable(s) 185 mm²
  • Power circuit: connector 1 cable(s) 185 mm²
  • Power circuit: bolted connection
Tightening torque
  • Control circuit: 1.2 N.m
  • Power circuit: 35 N.m
Mounting supportPlate
Heat dissipation8…9.8 W
