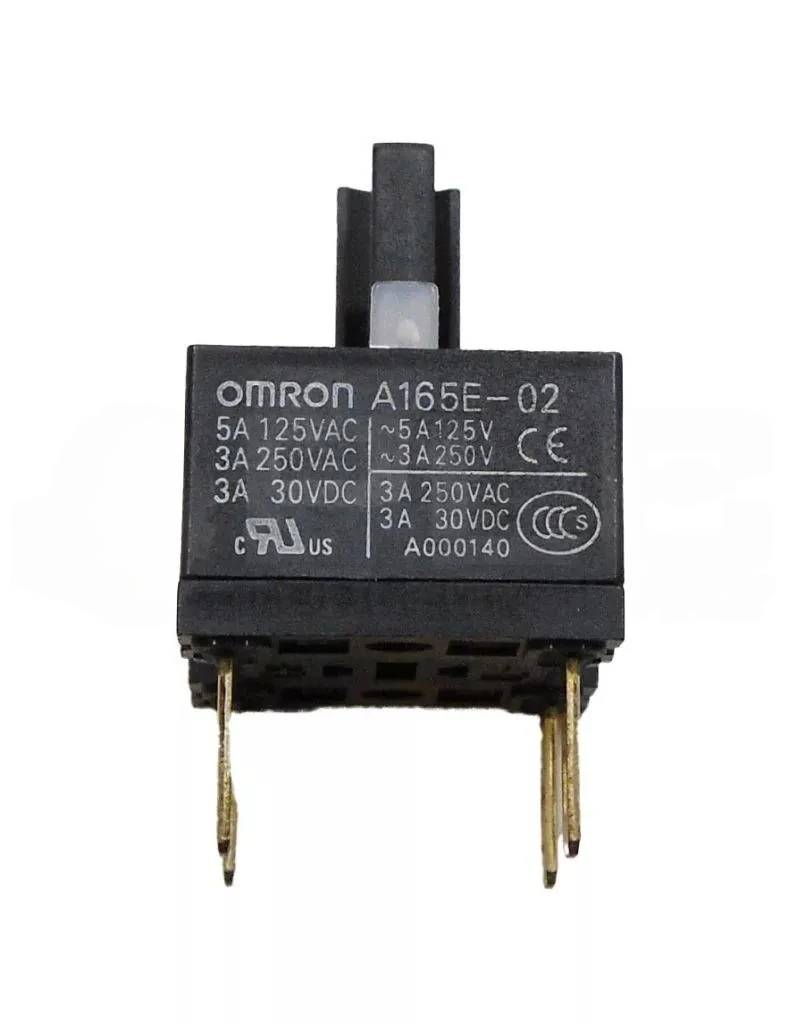

Product image for reference. Check the manufacturer's documentation for exact appearance and dimensions.

OMRON

OMRON A165-E02 Emergency Stop Switch, 16mm, 2NC, IP65

Brand: OMRON
Model / part no.: A165-E02
Category: Switches & Relays
Type: Push Buttons & Pilot Lights

Price and availability on request. Our team confirms both with every quotation.

The OMRON A165-E02 is a non-illuminated emergency stop switch designed for industrial applications requiring a reliable and safe means of stopping machinery. It features a twist-release mechanism, ensuring immediate response in emergencies. The switch has a 16mm panel cutout and is rated for 24 VDC operation. Its double-pole, normally closed (2NC) contacts provide secure and redundant safety. With an IP65 rating, it is protected against dust and water ingress, making it suitable for harsh environments. The switch is constructed with a separate design, allowing for easier wiring and maintenance.

Applications

Ideal for industrial automation, control panels, and OEM systems requiring a reliable emergency stop mechanism.

Specifications
Contact Configuration	2 Normally Closed (NC)
Voltage Rating	24 VDC
Mounting Style	Panel Mount
Panel Cutout	16 mm
Ingress Protection	IP65
Actuation Type	Twist Release
Push Button Diameter	30 mm
Push Button Material	Plastic
Termination Style	Quick Connect
Current Rating	5A at 125VAC
Operating Temperature Range	-10°C to +55°C
